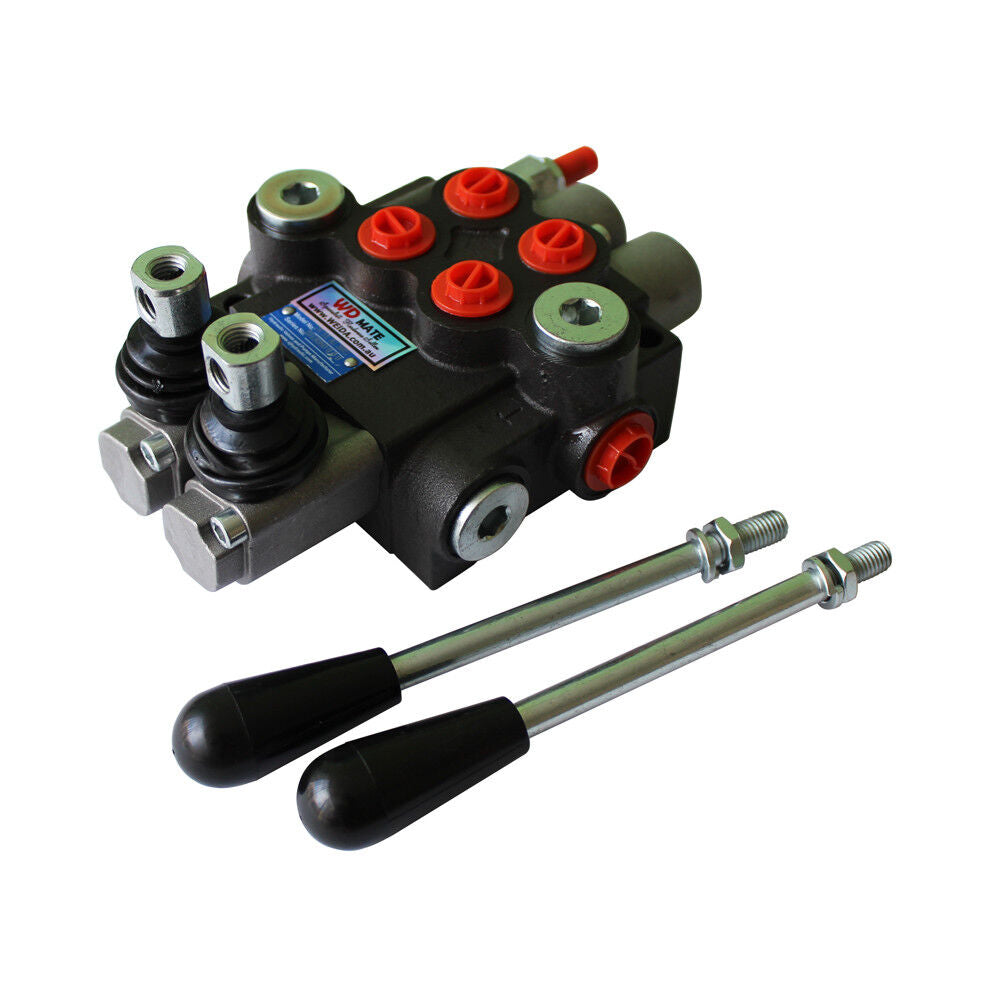

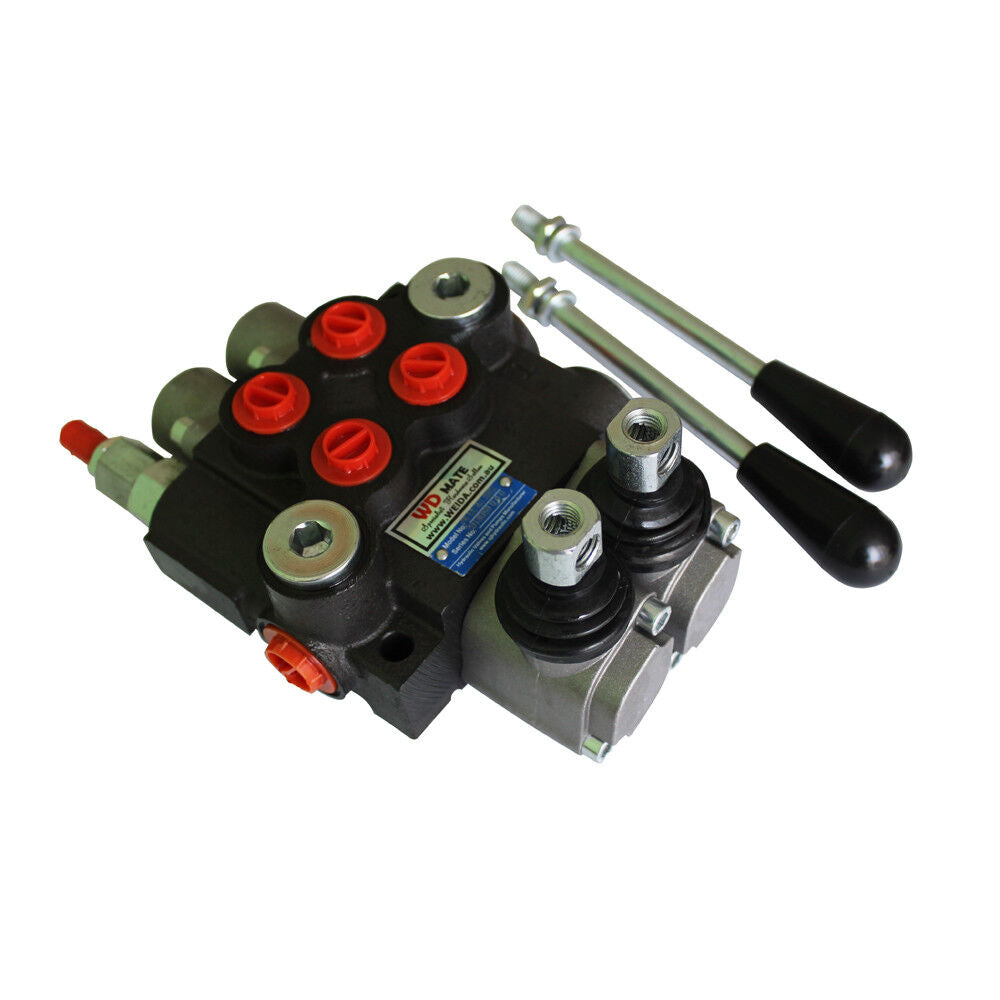

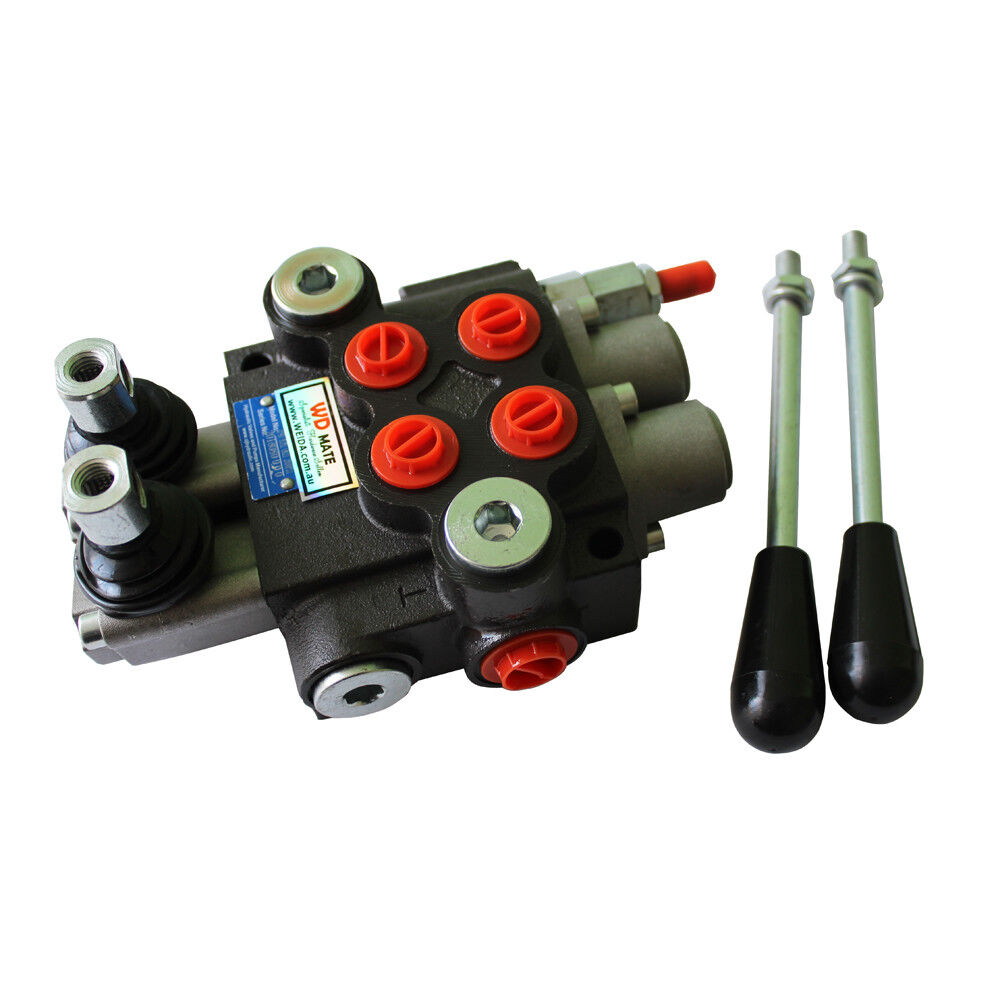

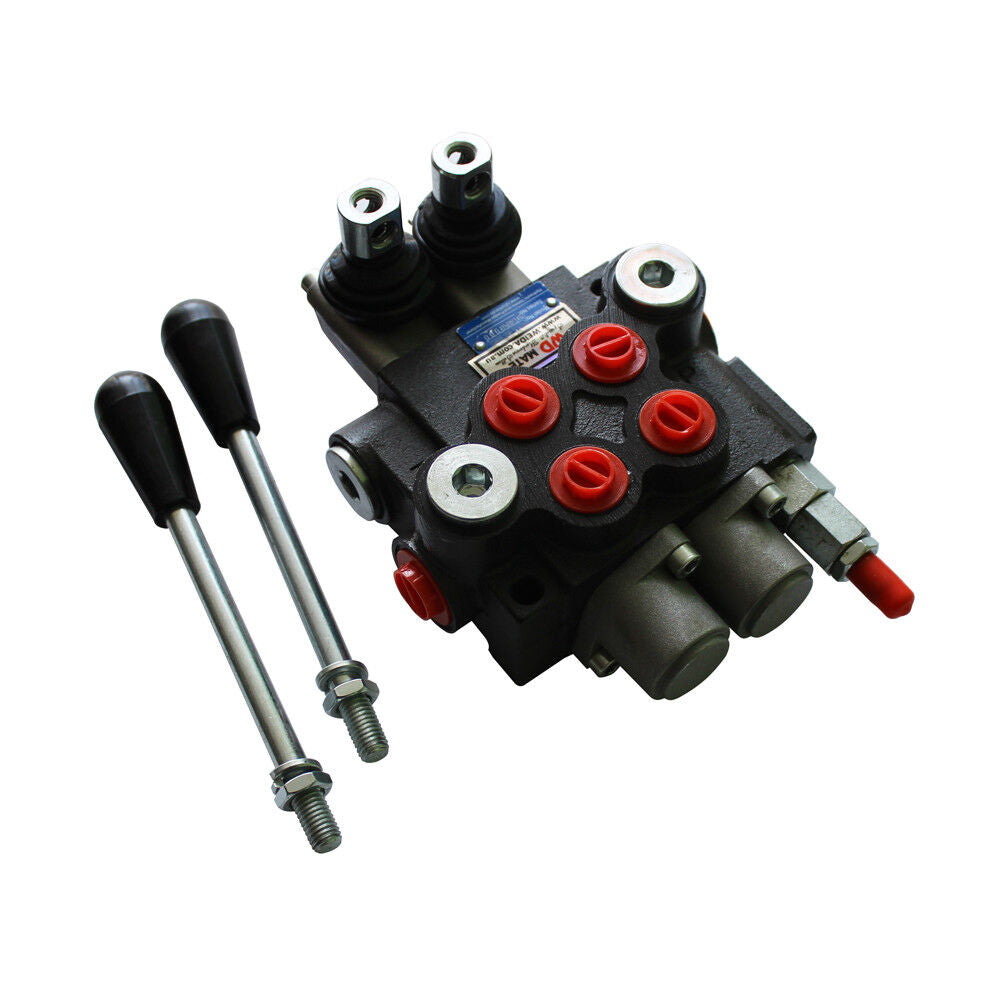

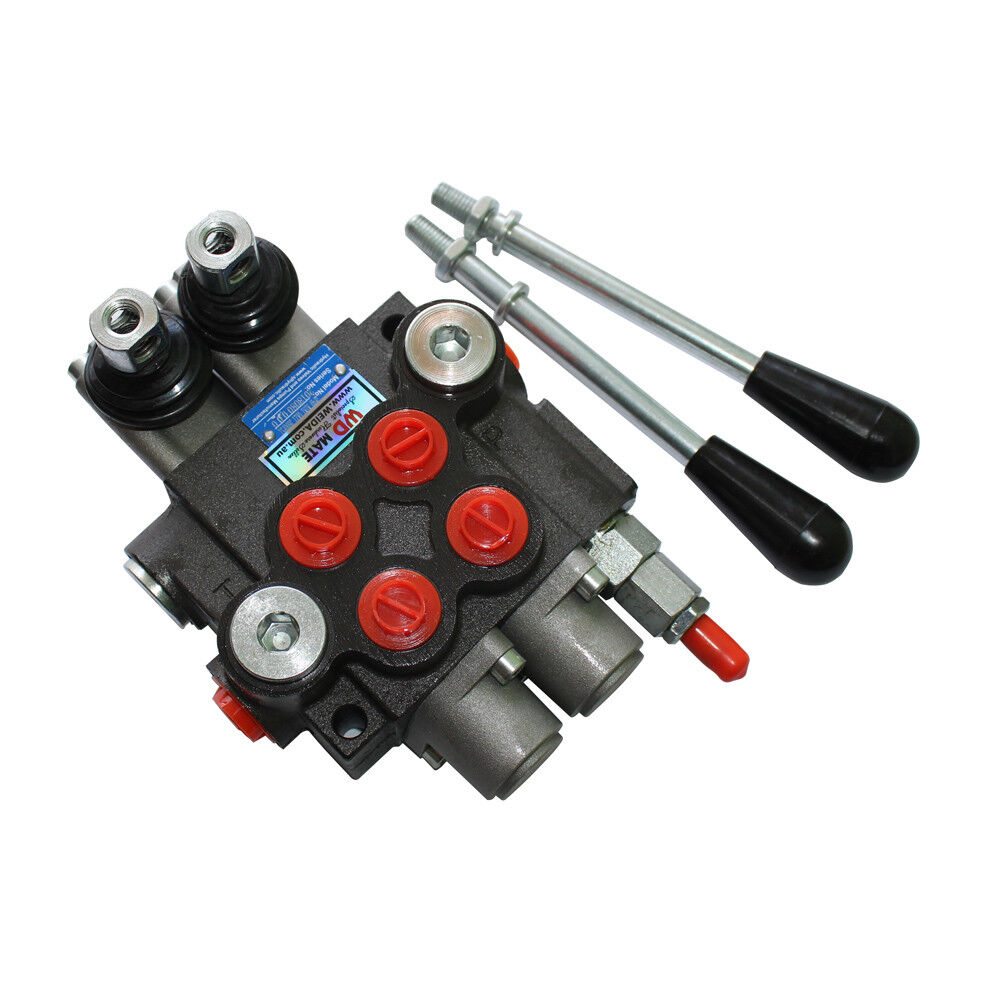

2 Spool Hydraulic Directional Control Valve Monoblock P40 3600psi 11gpm Ptn Ab
2 Spool Hydraulic Directional Control Valve Monoblock P40 3600psi 11gpm Ptn Ab
Regular price
$270.90 AUD
Regular price
Sale price
$270.90 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
2 spool.
Monoblock hydraulic directionalcontrol valve.
P40 3600psi 11gpm 20031001.
Application:.
P40 series with middle-high pressuremonoblock construction is developed on europe technology .
Inner check valve: the check valve insidethe valve body is to insure the hydraulic oil not to be.
Returned.
Inner relief valve: the relief valve insidethe valve body is able to adjust the hydraulic system working pressure.
Oil way: parallel circuit,power beyondoption.
Control way: manual control, pneumaticcontrol, hydraulic and electric control for optional.
Valve construction: monoblock construction,1-7 levers.
Spool function: o,y, p,a.
Option:hydraulic lock is available to beadded on a and b port.
Available with manual pneumaticcontrol,electric and pneumatic control ,hydraulic and electric control ant etc.
Parameters:.
Spool count:2 spool.
Nominal flow rate (l/min):40.
Max flow rate (l/min):40.
Nominal pressure(mpa):20.
Max pressure:3600psi.
Back pressure(mpa)<=1.
Tem.range: -20 °c to + 80°c.
Visc.range:10~400mm2/s.
Filtrating accuracy:<=10.
Ptn:g1/2.
Ab:g3/8.
Read below term defined as agreed-ready when make order automatically.
Monoblock hydraulic directionalcontrol valve.
P40 3600psi 11gpm 20031001.
Application:.
P40 series with middle-high pressuremonoblock construction is developed on europe technology .
Inner check valve: the check valve insidethe valve body is to insure the hydraulic oil not to be.
Returned.
Inner relief valve: the relief valve insidethe valve body is able to adjust the hydraulic system working pressure.
Oil way: parallel circuit,power beyondoption.
Control way: manual control, pneumaticcontrol, hydraulic and electric control for optional.
Valve construction: monoblock construction,1-7 levers.
Spool function: o,y, p,a.
Option:hydraulic lock is available to beadded on a and b port.
Available with manual pneumaticcontrol,electric and pneumatic control ,hydraulic and electric control ant etc.
Parameters:.
Spool count:2 spool.
Nominal flow rate (l/min):40.
Max flow rate (l/min):40.
Nominal pressure(mpa):20.
Max pressure:3600psi.
Back pressure(mpa)<=1.
Tem.range: -20 °c to + 80°c.
Visc.range:10~400mm2/s.
Filtrating accuracy:<=10.
Ptn:g1/2.
Ab:g3/8.
Read below term defined as agreed-ready when make order automatically.
