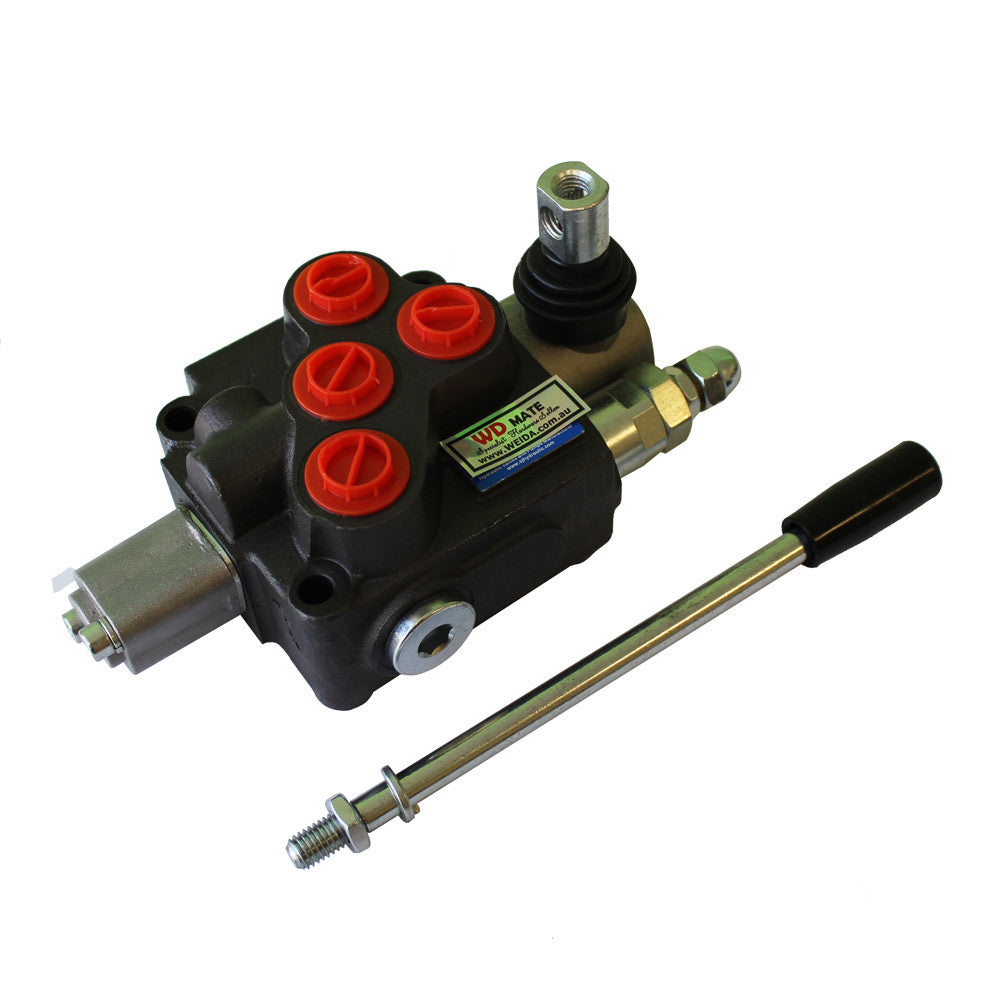

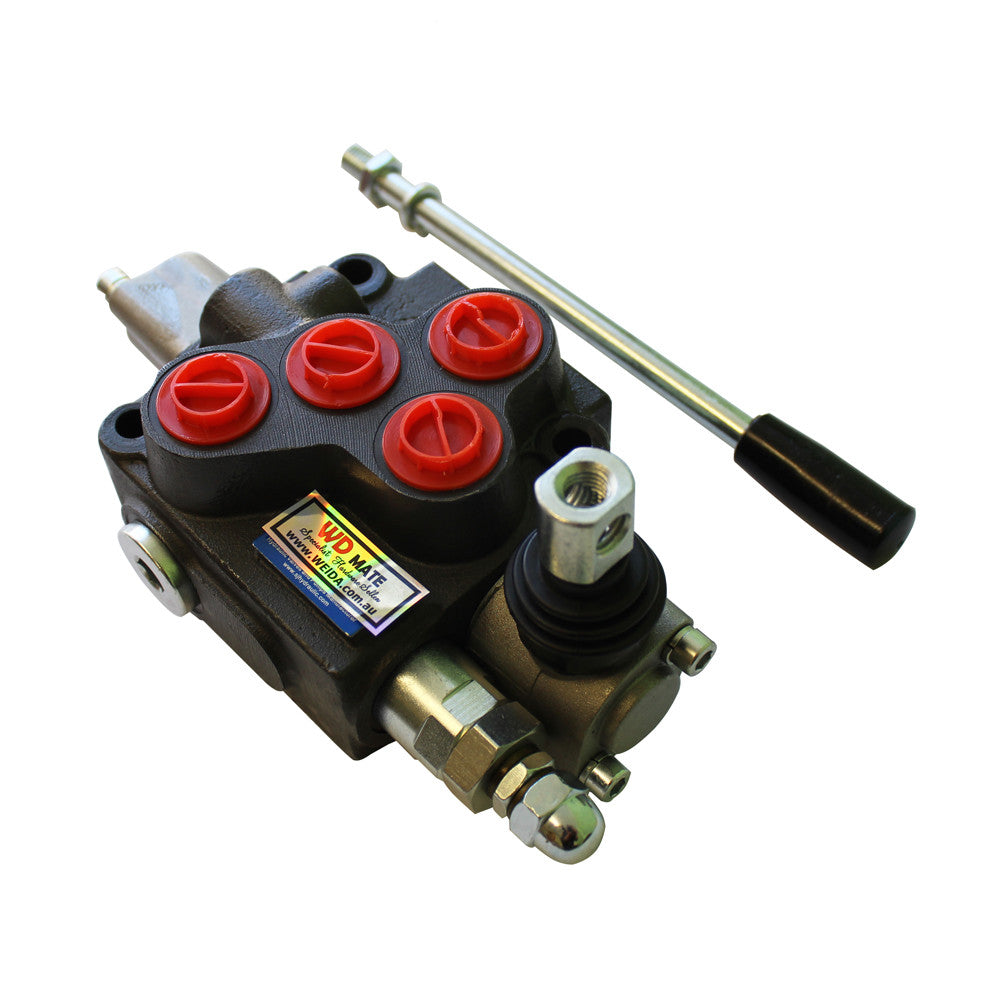

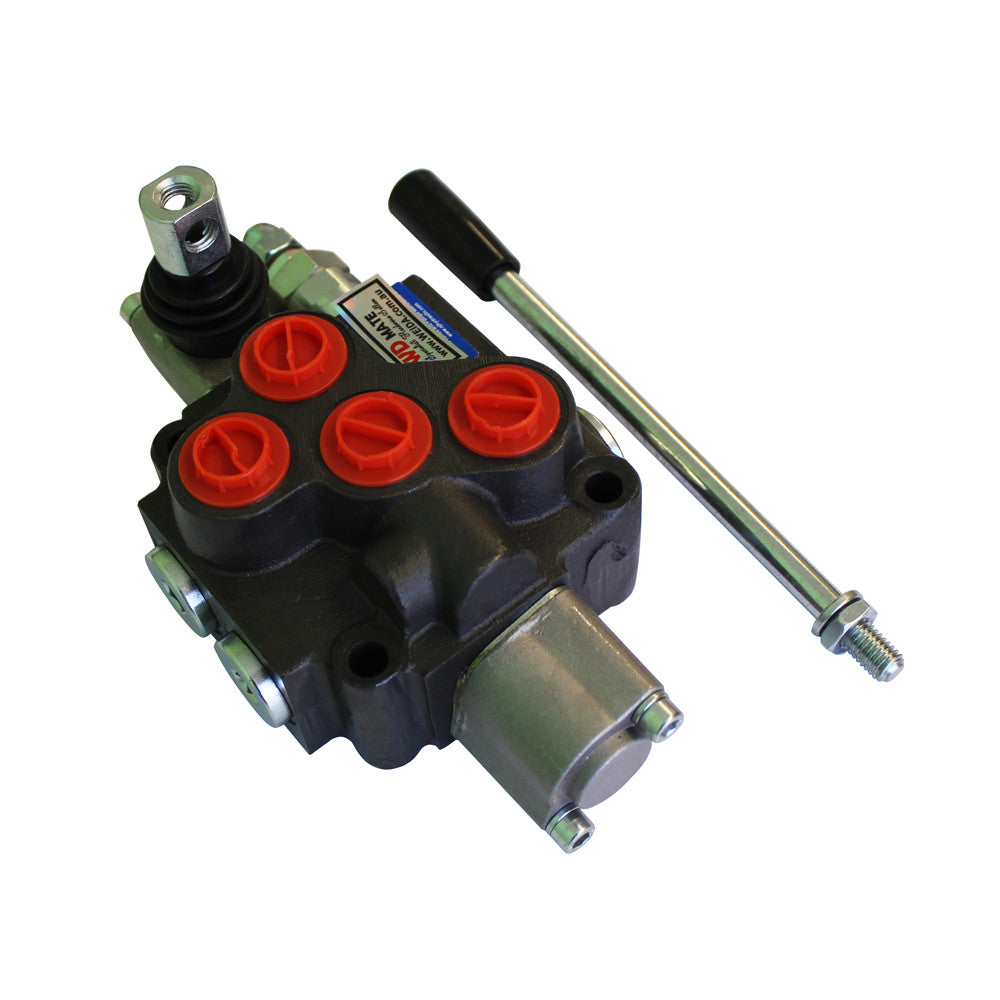

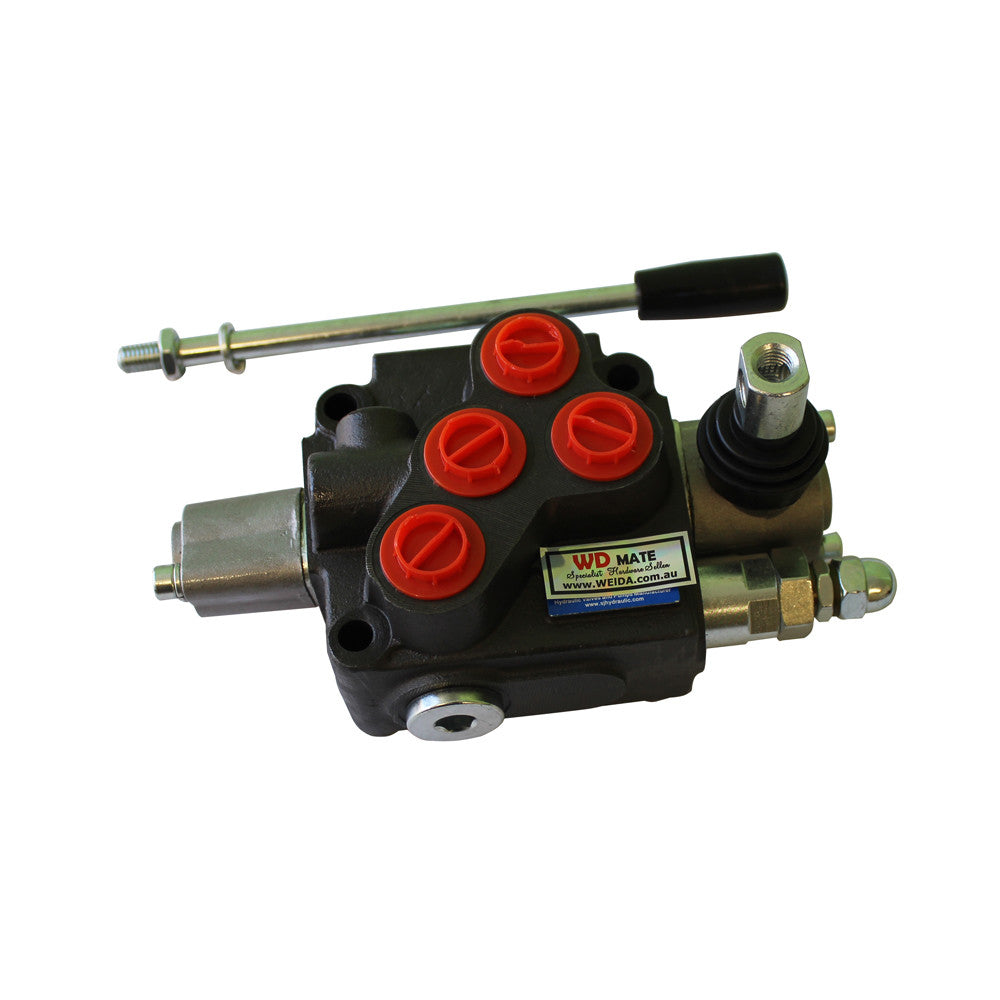

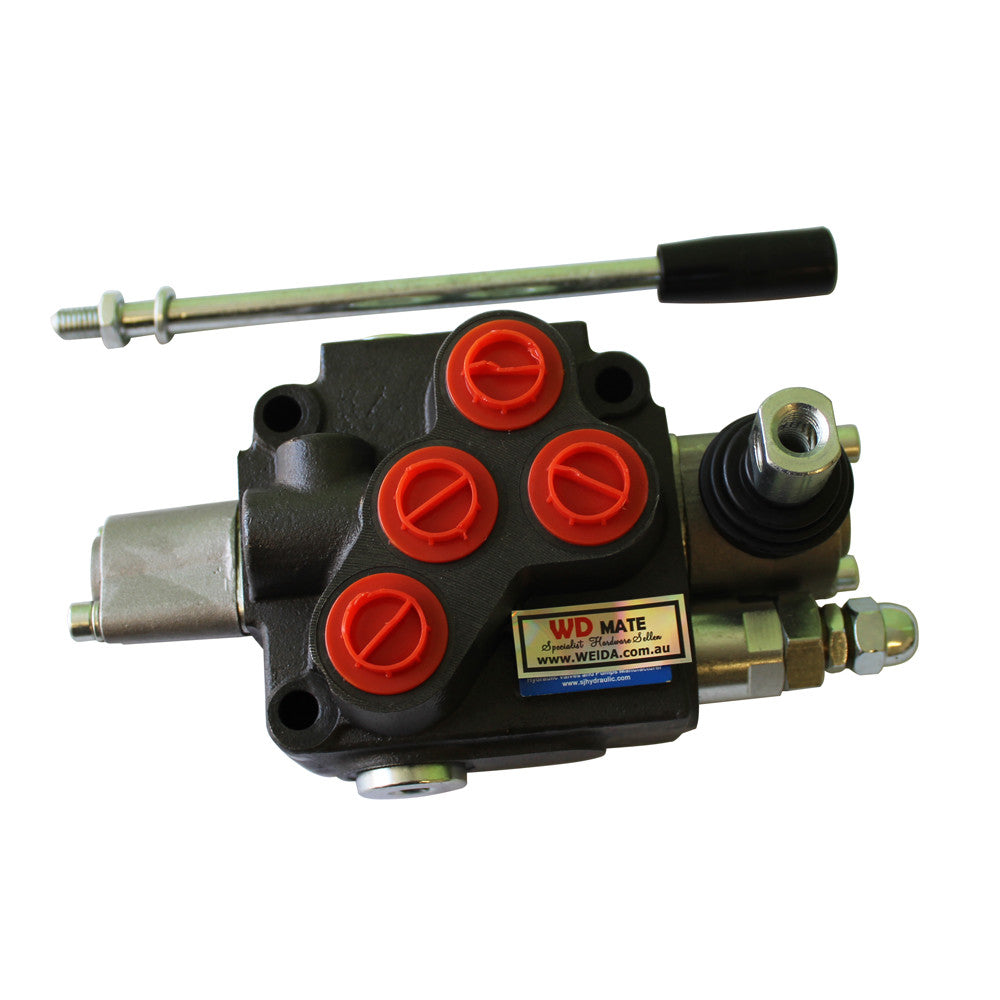

Hydraulic Directional Control Valve Spool O.y.p.a Monoblock 16/31.5mpa 50l/min

Pro hydraulic directional.
Monoblock control valves 20031000.
Application:.
Middle-high pressure monoblock construction is an independently developed control valves by our company.
Inner check valve: the check valve inside the valve body is to insure the hydraulic oil not to be.
Returned.
Inner relief valve: the relief valve inside the valve body is able to adjust the hydraulic system working pressure.
Oil way: parallel circuit,power beyond option.
Control way: manual control, pneumatic control, hydraulic and electric control for optional.
Valve construction: monoblock construction, 1-7 levers.
Spool function: o,y, p,a.
Option:hydraulic lock is available to be added on a and b port.
The valve is widely used in the hydraulic system of forklift environment vehicle and light loading machines.
Specification:.
Nominal flow(l/min):50.
Nominal pressure(mpa):16.
Max pressure(mpa):31.5.
Tem.range: -20 °c to + 80°c.
Visc.range:10~400mm2.
Filtrating accuracy:<10.
